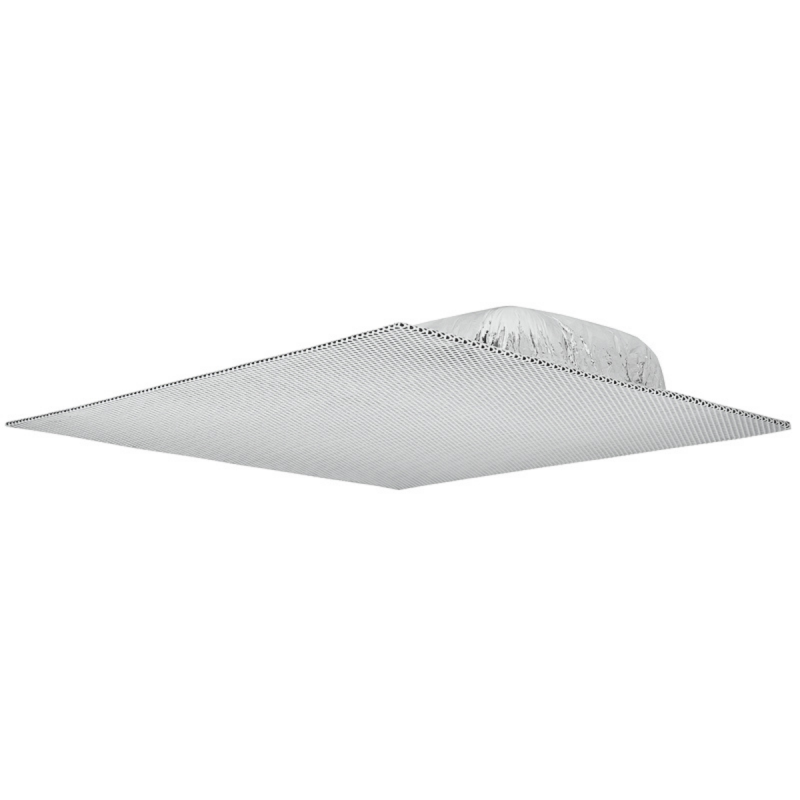

| FF 220T |
|
| Audio/acoustic and electrical |
|---|
| Speaker type |
1-way, full-range, in-ceiling speaker |
| Frequency range |
68 Hz to 18 kHz, -10 dB, half space |
| Power capacity |
16 W (rms) continuous pink noise (per IEC 60268-5)
32 W (rms) continuous program |
| Nominal sensitivity |
86 dB SPL, 1 watt, 1 m, half space |
| Nominal coverage angle |
170° conical coverage |
| Nominal impedance |
8 ohms per speaker |
| Driver |
(1) 3" (76.2 mm) paper cone |
| Input connector |
(1) 10 mm Euro-style captive screw terminal block, 7 pole |
| Tap settings |
|
| 70 V input |
16 W, 8 W, 4 W, 2 W, 1 W, null (bypass 8 ohm direct connection) |
| 100 V input |
Null, 16 W, 8 W, 4 W, 2 W, 1 W (bypass 8 ohm direct connection) |
|
| General |
|---|
| Package |
2 speakers (1 pair) with 2' (61 cm) cross bars |
| Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Mounting |
|
| US version |
Drops into 2' x 2' (61 cm x 61 cm) or 2' x 4' (61 cm x 122 cm) suspended tile ceilings |
| Metric version |
Drops into 600 mm x 600 mm or 600 mm x 1200 mm suspended tile ceilings |
| Enclosure type |
Composite, square, with metal grille |
| Enclosure outer dimensions |
|
| US version (2' x 2') |
3.25" H x 23.75" W x 23.75" L
(8.3 cm H x 60.3 cm W x 60.3 cm L) |
| Metric version (600 mm x 600 mm) |
3.25" H x 23.4" W x 23.4" L
(8.3 cm H x 59.4 cm W x 59.4 cm L) |
| Product weight |
Single: 7.8 lbs (3.5 kg) |
| Regulatory compliance |
CE, NFPA90A, NFPA70;
UL Listed for use in plenum airspaces: meets UL 2043 for heat and smoke release, meets UL 1480 for commercial and professional audio systems
Complies with the appropriate requirements of RoHS, and WEEE. |
| Product warranty |
5 years parts and labor |
| NOTE |
All nominal levels are at ±10%. |
|
| NOTE |
Specifications are subject to change without notice. |
|
 |
 |
| (4640-D4) |
