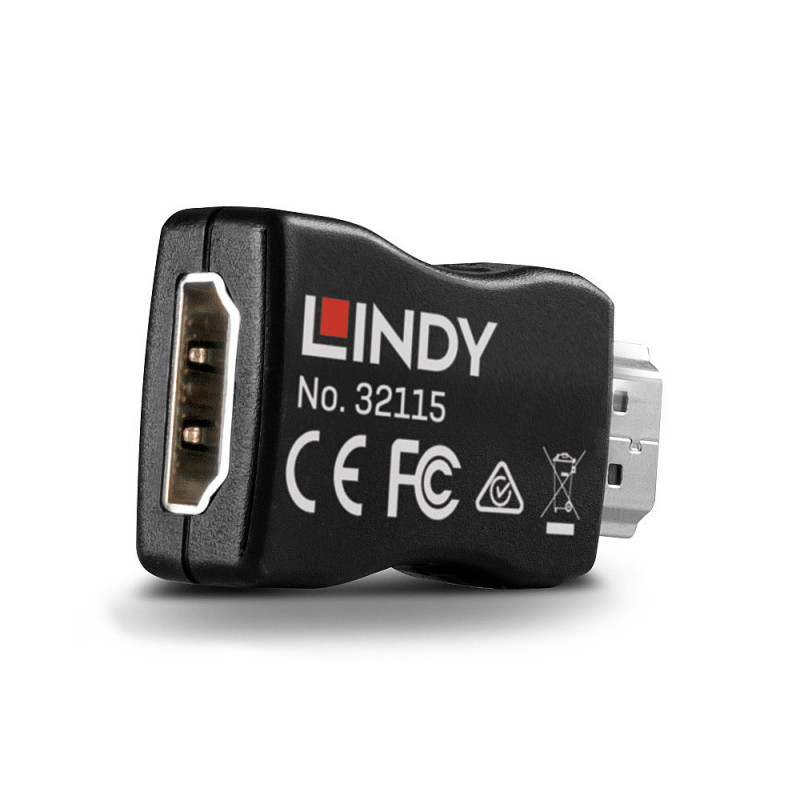

Lindy Emulateur HDMI 2.0 EDID

2 years warranty

Product highlights
  • Continuously emulates HDMI EDID information
  • Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR
  • Uses cloned data or, when this is not available, stored pre-set screen resolutions/timings
  • Powered via HDMI Source Interface
Déclinaisons

Lindy Emulateur EDID HDMI 10.2G

GARANTIE
 2
ANS
32104

Lindy Câble KVM et USB combiné, 3m

GARANTIE
 2
ANS
32187

Lindy Câble KVM et USB combiné, 2m

GARANTIE
 2
ANS
32186

Lindy Câble KVM et USB combiné, 1m

GARANTIE
 2
ANS
32185

Lindy Switch KM USB 2.0 & Audio 4 Ports

GARANTIE
 2
ANS
32166

Lindy Switch KM USB, 2 Ports

GARANTIE
 2
ANS
32165

Lindy Émulateur EDID DVI

GARANTIE
 2
ANS
32122

Lindy Émulateur EDID VGA

GARANTIE
 2
ANS
32121

Lindy Enregistreur EDID HDMI / VGA / DVI

GARANTIE
 2
ANS
32120

Lindy Emulateur EDID DVI avec clonage

GARANTIE
 2
ANS
32117


€64.00 (tax incl.) €53.33 (tax excl.)
Tax included
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Lindy Emulateur HDMI 2.0 EDID

In my box
  • HDMI 2.0 EDID Emulator

HDMI 2.0 EDID Emulator

The Lindy HDMI 2.0 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM Extenders, Switches and Splitters. It can also be used in place of a monitor to keep the graphics card of a PC or Server awake for remote access via IP. With support for resolutions up to Ultra HD 4K 60Hz (via cloning) including High-Dynamic Range and with the ability to pass–through HDCP 2.2 content, the Emulator is suitable for use with the very latest PC and AV applications.

Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily clone the EDID data from a HDMI display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds!

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

Technical sheet

AV Interface: HDMI

Interface Standard: 2.0

Supported Bandwidth: 18 Gbps

Maximum Resolution: 3840x2160@60Hz 4:4:4 8Bit / 4:2:2 12Bit

Video EDID:

640 x 480p at 60Hz , 640 x 480p at 67Hz , 640 x 480p at 72Hz , 640 x 480p at 75Hz

720 x 480p at 60Hz ,

720 x 480i at 60Hz ,

720 x 400p at 70Hz ,

720 x 576p at 60Hz

720 x 576i at 50Hz

800 x 600p at 56Hz , 800 x 600p at 60Hz , 800 x 600p at 72Hz , 800 x 600p at 75Hz

832 x 624p at 75Hz ,

1024 x 768p at 60Hz , 1024 x 768p at 70Hz , 1024 x 768p at 75Hz

1280 x 1024p at 75Hz ,

1280 x 720p at 50Hz

1152 x 870p at 75Hz ,

1152 x 864p at 75Hz

1280 x 1024p at 60Hz ,

1280 x 960p at 60Hz

1440 x 480p at 60Hz ,

1440 x 576p at 50Hz ,

1440 x 900p at 60Hz

1600 x 1200p at 60Hz

1680 x 1050p at 60Hz

1920 x 1080p at 60Hz , 1920 x 1080p at 50Hz ,

1920 x 1080i at 60Hz , 1920 x 1080i at 50Hz

1920 x 1200p at 60Hz ,

2560 x 1440p at 60Hz

3840 x 2160p at 24Hz , 3840 x 2160p at 30Hz , 3840 x 2160p at 60Hz

Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz

HDCP Support: 2.2

Special Features: High Dynamic Range Support, CEC Compatible



Connectors

Input: HDMI Type A Male

Output: HDMI Type A Female

Power: Via HDMI Source Interface



Physical Properties

Dimensions WxDxH: 24x34.3x11.8mm (0.94x1.35x0.46in)

Housing Material: ABS

Net Weight: 0.008kg (0.02lb)

Operating Temperature: 0°C - 60°C (32°F - 140°F)

Storage Temperature: -10°C - 70°C (14°F - 158°F)

Humidity: 0 - 80% RH (non-condensing)

Power Requirements: -

Colour: Black
