Brand LINDY

Lindy Emulateur HDMI 2.0 18G EDID

2 years warranty

Product highlights

Supports EDID learning or Preset Emulation
15 Pre-set EDID modes with blocks for AV and PC applications
Supports resolutions up to Ultra HD 4K 60Hz including HDCP 2.2 pass-through
Powered via HDMI source interface

Déclinaisons

€138.79 (tax incl.) €115.66 (tax excl.)

Tax included

Subscribe To When In Stock

You have successfully subscribed to this product

Description

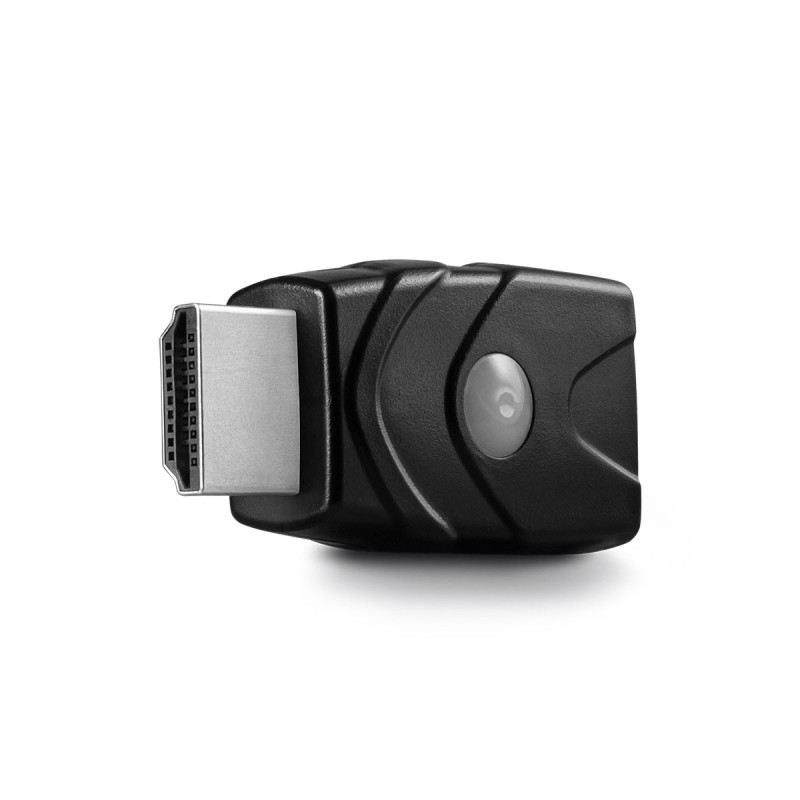

Lindy Emulateur HDMI 2.0 18G EDID

In my box

HDMI 2.0 18G EDID Emulator

HDMI 2.0 18G EDID Emulator

The Lindy HDMI 2.0 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM Extenders, Switches and Splitters.

The Emulator can solve a host of compatibility problems when using mixed equipment, especially extenders. With support for resolutions up to Ultra HD 4K 60Hz and with the ability to pass –through HDCP 2.2 content the emulator is suitable for use with the very latest PC and AV applications.

Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily clone the EDID data from a HDMI display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds!

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

Technical sheet

Connectors

Connector A: HDMI Type A Male

Connector B: HDMI Type A Female

Housing Material: ABS

Connector Plating: Nickel

Pin Construction: Phosphor Bronze

Pin Plating: Nickel

Dimensions (approx.) WxDxH: 41x23x12mm (1.61x0.91x0.47in)

Cable Construction

Length: -

Standard: HDMI 2.0

Colour: Black

Type: -

Jacket Diameter: -

Jacket Material: PVC

Conductor Material: -

Conductor Gauge: -

Shielding: Copper Foil

Specifications

Supported Bandwidth: 18 Gbps

Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit

Nominal Attenuation:

300kHz-825MHz <5dB

825MHz-2.475GHz 5dB-12dB

2.475GHz-4.125GHz 12dB-20dB

4.125GHz-5.1GHz 20dB-25dB

Minimum Bend Radius: -

Operating Temperature: 0°C - 60°C (32°F - 140°F)

Storage Temperature: 0°C - 60°C (32°F - 140°F)

ATC Approved: -
