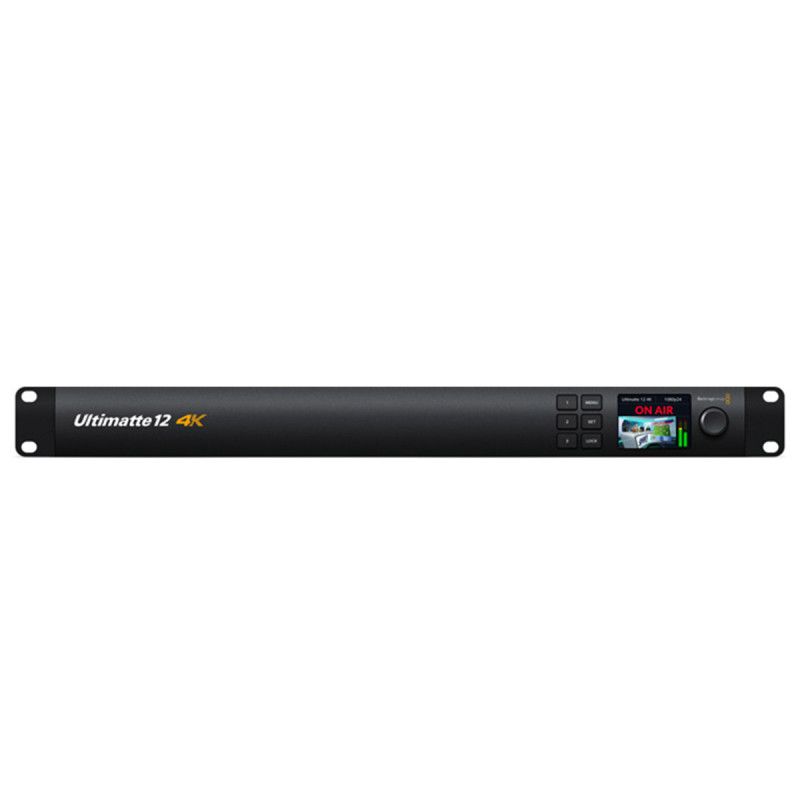

Blackmagic Ultimatte 12 4K - Solution d’incrustation 4K - 12G-SDI

Connections

SDI Video Inputs: 7 plus monitor in

SDI Video Outputs: 9

SDI Video Loop: 7 x reclocked SD, HD, Ultra HD for corresponding inputs.

SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G multi rate support

Reference Input: Tri-Sync or Black Burst

Reference Loop Output: Tri-Sync or Black Burst

Control Panel Connection: Ethernet supports 10/100Mbps. Allows direct connection between Ultimatte 12 and Ultimatte Smart Remote 4.

GPIO: 5 x GPI In; 1 x GPI Out; 1 x Tally In.

Standards

SD Video Standards: 625i50 PAL, 525i59.94 NTSC

HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance: SMPTE 259, SMPTE 292, SMPTE 424, SMPTE 2081, SMPTE 2082

Video Sampling: 4:2:2

Color Precision: 10-bit

Color Space: REC 601, REC 709

Software

Software Updates: Using USB-C connection directly connected to Mac OS X™ or Windows™ computers.

Configuration: Ultimatte IP address is set via the Ultimatte setup utility connected via USB.

Control System

Control Panel Required: Ultimatte Smart Remote 4

Custom Control: Ethernet protocol included in the Ultimatte instruction manual.

Power Requirements

Power Supply: 2 x Internal 100-240V AC, 50/60Hz

Power Usage: 100W

Environmental Specifications

Operating Temperature: 0° to 40°C (32° to 104°F)

Storage Temperature: -20° to 60°C (-4° to 140°F)

Relative Humidity: 0% to 90% non-condensing.
