STORM Pro: HD/SD-SDI I/O with HDMI Out Board for EDIUS X/9
1 year warranty
- Analog Component/S-Video/Composite Video Inputs
- Analog Component/S-Video/Composite Video Outputs
- 4-channel balanced analog audio input
- 4-channel balanced analog audio output
- Audio monitor output with volume control (stereo mini jack)
Subscribe To When In Stock
STORM Pro: HD/SD-SDI I/O with HDMI Out Board for EDIUS X/9

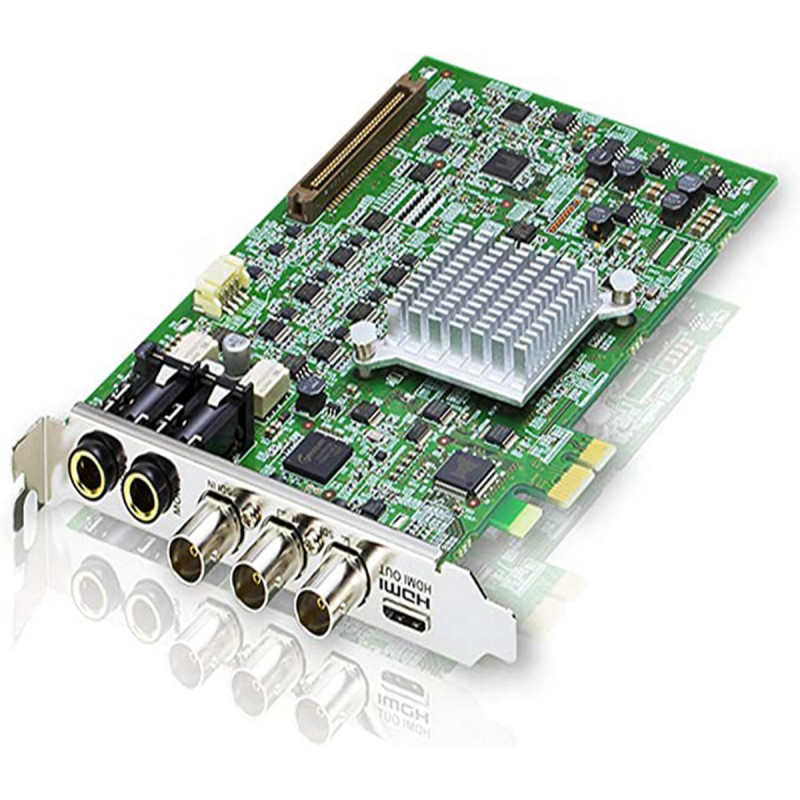

- Grass Valley STORM Pro HD-SDI Input/Output & HDMI Output PCIe x1 Board with Bay for EDIUS Editing System
STORM Pro: HD/SD-SDI I/O with HDMI Out Board for EDIUS X/9
The STORM Pro HD-SDI Input/Output & HDMI Output PCIe x1 Board from Grass Valley is suitable for editors who require high-quality audio and video monitoring capability from their EDIUS non-linear editing system. It allows the users in a file-based, networked environment to preview projects at the same quality level as the final, delivered output. When used in conjunction with EDIUS editing software (available separately), this PCI Express card-based hardware provides constantly synced, full-resolution preview of effects, and content directly from the timeline. In addition, the output board comes with the STORM Pro Bay for adding analog component/S-Video/composite video inputs/outputs and Analog balanced 4-channel audio inputs/outputs.
- Bus Interface: PCI Express Rev. 1.1 x1 lane
- Video formats Output: 1920 x 1080i50 / 59.94
- Video formats Output: 1920 x 1080psF/ 23.98
- Video formats Output: 1280 x 720p 50/59.94
- Video formats Output: 720 x 480i59.94
- Video formats Output: 720 x 576i50
- Video input: 1 x SDI (SMPTE ST 292/ST 259-C)
- Video output: 2 x SDI (SMPTE ST 292/ST 259-C)
- Video output: 1 x mini HDMI connector (HDMI 1.3, HDCP not supported)
- Audio input: Embedded 8-channel audio (SMPTE ST 299/ ST 272-C)
- Audio output: 8-channel SDI embedded audio (SMPTE ST 299/272-A)
- Audio output: 24-bit, 48kHz 2/8ch HDMI embedded audio (LPCM)
- Audio Output: Stereo Monitor Audio (1/4" TRS)
- Device Bay: Input
- Device Bay: Analog Component/S-Video/Composite Video: 3 x BNC Output Analog Component/S-Video/Composite Video: 3 x BNC
- Device Bay: 4-Channel Balanced Analog Audio Input: 1/4" TRS
- Device Bay: 4-Channel Balanced Analog Audio Output: 1/4" TRS Audio Monitor Output with Volume Control: Stereo Mini Jack.
- Regulatory Compliance: CE, FCC Class A, C-Tick, ICES
- Power requirements: 12 VDC 0.5 A, 3.3 VDC 0.5 A
- Dimensions: 4,37 x 3,5"
