Brand GRASS VALLEY

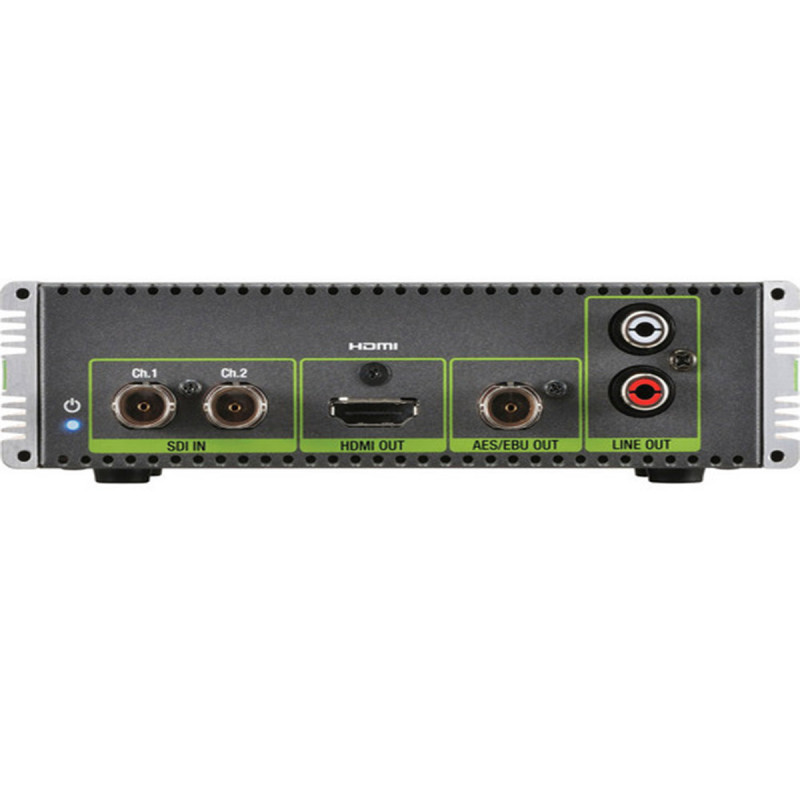

Grass Valley ADVC-G3: Dual SDI to HDMI 1.4 Converter/Multiplexer

1 year waranty

Product highlights

Device for 3D Monitoring via HDMI Output
Dual 3G/HD/SD-SDI Inputs
(3) Types of Real-Time 3D Multiplexing
Audio De-Embedding
SDI to HDMI Conversion
Stereo AES/EBU & A

€1,078.80 (tax incl.) €899.00 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

Grass Valley ADVC-G3: Dual SDI to HDMI 1.4 Converter/Multiplexer

In my box

Grass Valley ADVC-G3: Dual SDI to HDMI 1.4 Converter/Multiplexer

Grass Valley ADVC-G3: Dual SDI to HDMI 1.4 Converter/Multiplexer

The Grass Valley ADVC G3 Dual SDI to HDMI Converter / Multiplexer with 3D Support is a compact, 1/3 RU box that performs an extremely valuable function for any facility that works with stereoscopic 3D content: multiplexing in three different flavors.

Via the device's two 3G/HD/SD-SDI inputs, the ADVC G3 accepts the left-eye and right-eye video signals that make up a stereoscopic image. For output via HDMI 1.4, it multiplexes the two signals in selectable side-by-side, top & bottom, and sequential frame-packing patterns. This allows content to be viewed correctly on 3DTV screens.

The ADVC G3 also performs audio de-embedding via its AES-EBU stereo output and dual analog audio outputs – a useful function for any monitoring environment, 3D or not. If used in 2D mode, the second BNC input can be used as a backup input for SDI.

Technical sheet

Video Inputs : 2x BNC: 3G/HD/SD-SDI
Audio Inputs : 16x channels embedded via SDI
Video Outputs : 1x HDMI
Audio Outputs : 2x analog audio
Audio Outputs : 1x AES/EBU (stereo)
Audio Outputs : 8x channels embedded via HDMI
Input Formats : 1080i60/59.94/50
Input Formats : 1080p60/59.94/50/30/29.97/25/24/23.98
Input Formats : 1080psf/24/23.98
Input Formats : 1035i60/59.94
Input Formats : 720p60/59.94/50/30/29.97/25/24/23.98
Input Formats : 486i59.94
Input Formats : 576i50
Output Formats : 1080i60/59.94
Output Formats : 1080p60/59.94/50/30/29.97/25/24/23.98
Output Formats : 720p60/59.94/50/30/29.97/25/24/23.98
Output Formats : 480i/p 59.94
Output Formats : 576i/p50
Input Signal Compatibility : SMPTE 259M (SD-SDI), SMPTE 292M (HD-SDI), SMPTE 424M (3G-SDI)
Output Signal : HDMI
Power : 12V DC, 3A (includes AC adapter)
Operating Temperature : 32-104 °F
Humidity : 8%~80% (no condensation)
Dimensions : 1.7 x 5.6 x 3.9"
