Brand PTZ OPTICS

PTZOptics PT12X-NDI-ZCAM PTZOptics 12X 1080p NDI

3 Years Warranty

Product highlights

1/2.7" CMOS Sensor
Built-In 12x Optical Zoom Lens
3.5 to 42.3mm Focal Length
6.9 to 72.5° Angle of View
Simultaneous SDI and IP/NDI Output
1080p60 Output over SDI, 1080p30 via IP

Déclinaisons

€1,306.80 (tax incl.) €1,089.00 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

PTZOptics PT12X-NDI-ZCAM PTZOptics 12X 1080p NDI

In my box

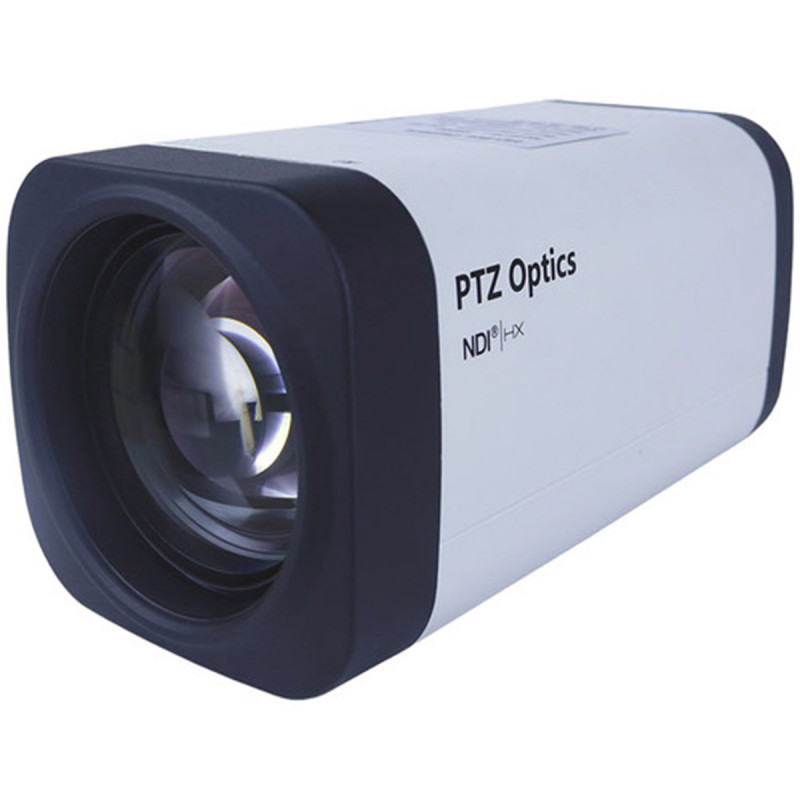

PTZOptics 12x NDI|HX ZCAM 3G-SDI Box Camera
AC Power Adapter

PTZOptics PT12X-NDI-ZCAM PTZOptics 12X 1080p NDI

The 12x NDI|HX ZCAM 3G-SDI Box Camera from PTZOptics is designed to capture static shots of a specific area of your environment. It can be used in meeting rooms and conferencing applications as well as combined with PTZ cameras to provide more angle options in your setup. The camera features a built-in 12x optical zoom lens, which has a focal length of 3.5mm wide to 42.3mm telephoto. The zoom range is ideal for small spaces and allows getting wide shots in up to a 72.5° angle of view.

The camera offers up to 1080p60 output over 3G-SDI or up to 1080p30 over IP (NDI|HX or RTSP/RTMP). SDI and IP can be output simultaneously. The camera can be powered using an included power adapter or conveniently over Power-over-Ethernet. The same cable used for IP video and connectivity can also be used for PoE.

Technical sheet

Sensor : 1/2.7" CMOS
Effective Pixels : 2.07 MP
Resolution : 1080p60/50/30/25, 1080i60/50, 720p60/50
Resolution : IP/NDI|HX is Limited to 1080p30
Scanning Mode : Progressive
Lens : Built-In
Lens : 3.5 - 42.3mm
Lens : f1.8 - 2.8
Optical Zoom : 12x
Digital Zoom : 16x
Minimum Illumination : 0.5 Lux at f/1.8, AGC On
Shutter : 1/30 - 1/10000s
White Balance : Auto, Indoor, Outdoor, One Push, Manual
Backlight Compensation : Yes
Digital Noise Reduction : 2D/3D DNR
Video S/N Ratio : ≥55 dB
Horizontal Angle of View : 6.9 to 72.5°
Vertical Angle of View : 3.9 to 44.8°
Image Mirroring : Yes
Number of Presets : 255
Preset Accuracy : 0.1°
Video Codecs : H.264, H.265, MJPEG
Image Freeze : Yes
Face Detection : No
PoE : Yes, 802.3af
Video Streams : First / Second Stream
Streaming Resolution First Stream: : 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
Streaming Resolution Second Stream: : 1280 x 720, 1024 x 576, 720 x 480, 720 x 408, 640 x 360, 480 x 270, 320 x 240, 320 x 180
Streaming Bit Rate : 32 to 20480 Kb/s
Streaming Bit Rate : Variable Rate, Fixed Rate
Streaming Frame Rates SDI: : 50 Hz: 1 - 50 fps
Streaming Frame Rates SDI: : 60 Hz: 1 - 60 fps
Streaming Frame Rates IP: : 50 Hz: 1 - 25 fps
Streaming Frame Rates IP: : 60 Hz: 1 - 30 fps
Streaming Audio Standard : AAC
Streaming Audio Rate : 96/128/256 Kb/s
Supported Protocols : TCP/IP, HTTP, RTSP, RTMP, Multicast, DHCP
Video Output : 1 x 3D-SDI on BNC
Network Interface : 1 x RJ45: 10/100/1000M Adaptive Ethernet Port
Audio Input : 1 x 3.5 mm Audio Line In
Communication Interface : 1 x RS-485 3-Pin Phoenix Port
Communication Interface : Max Distance: 4921' / 1500 m
Communication Interface : Protocol: VISCA/Pelco-D/Pelco-P
Power Input : JEITA Type 12 VDC
Input Voltage : 12 VDC
Current Consumption : 0.5 A (Max)
Operating Temperature : 14 to 104°F / -10 to 40°C
Storage Temperature : -40 to 140°F / -40 to 60°C
Power Consumption : 6 W (Max)
Mount Type : 1/4"-20 Female
Dimensions : 3.1 x 2.9 x 6.3"
Weight : 1.4 lb
