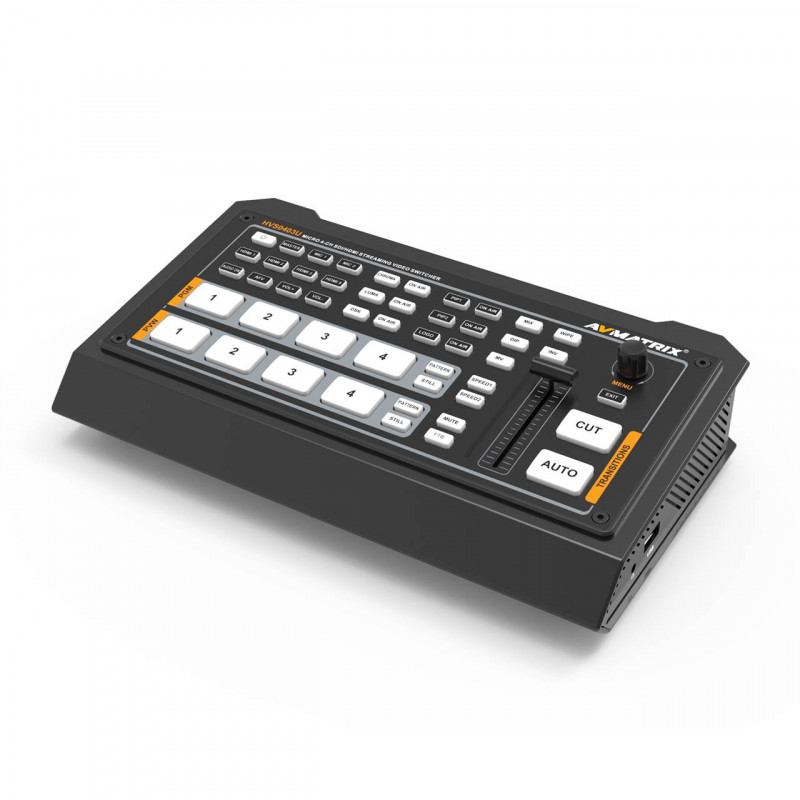

AVMATRIX Sélecteur vidéo en direct 4 canaux SDI et HDMI HVS0403U
1 year warranty
Product highlights
- 2×HDMI & 2×3G-SDI inputs, support auto-detected
- 2×HDMI PGM outputs,1×HDMI multiview output, 1×USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC or Android phone
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, 2×PIP/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
- Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/ line In; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
Déclinaisons
Subscribe To When In Stock
You have successfully subscribed to this product
Description
In my box
- 1x AVMatrix HVS0403U
- 1x USB-A to USB-C cable (USB 2.0)
- 1x pointing adapter
- 1x power adapter
AV Matrix HVS0403U Micro 4 Channel SDI&HDMI Video Switcher
The AVMatrix HVS0403U is a compact FullHD video switcher with two HDMI inputs and two SDI inputs. In addition to two PGM outputs, the video mixer also has an HDMI output with multiview. Using a PC and the free OBS streaming software, the mixer signal can be streamed via USB.
Technical sheet
formats: 1080p60, 59.94, 50, 30, 29.97, 25, 24, 23.98
formats: 1080PsF30, 29.97, 25, 24, 23.98
formats: 1080i60, 59.94, 50
formats: 720p60, 59.94, 50, 30, 29.97, 25, 24, 23.98
format: 625i50 PAL
formats: 525i59.94 NTSC
format: 576p50
formats: 576i50
formats: 480p60, 59.94
formats: 480i60, 59.94
color space: HDMI (RGB/YUV)
color space: IDS (YUV)
inputs: 2xHDMI
inputs: 2x 3G SDI
inputs: 1x USB-A 3.0
Inputs: 2x 3.5mm jack
inputs: 1x DC 12V
outputs: 2x HDMI-A (PGM)
outputs: 1x HDMI-A (multi-view)
outputs: 1x USB-C 2.0 (streaming and recording)
outputs: 1x DB-15 (count)
Outputs: 1x 3.5mm jack socket
outputs: 1x RJ45
Dimensions: 244.5 x 143.2 x 44.5mm
Weight: approx. 1.02 kg
Data sheet
- Type d'effets
- Alpha Key
Chroma Key
Graphic
Luma Key
Transition - Sorties
- 1 x DB-15
1 x RJ45
1 x USB Type C
3 x HDMI - Mémoire graphique
- 32 images
- Format vidéo pris en charge (max)
- 1080p60
- Espace colorimétrique
- RGB
YUV - Entrées
- 2 x 3G SDI
2 x HDMI
2 x jack 3,5 mm - Couleur du produit
- Noir
- Dimensions
- 244,5 x 143,2 x 44,5 mm
- Poids (en kg)
- 1.02
