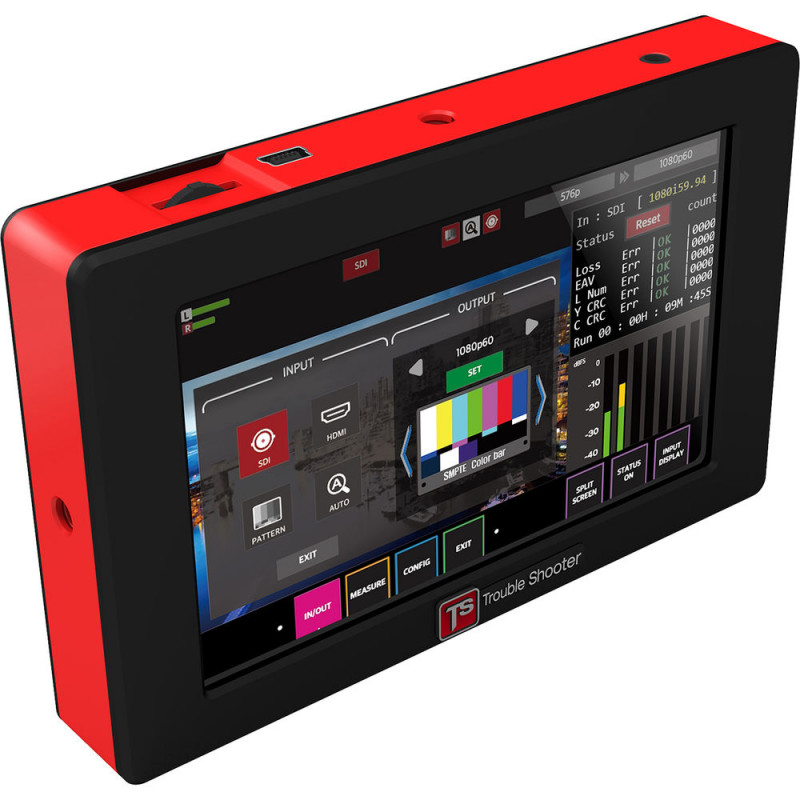

Digital Forecast BRIDGE-X-TS MINI outil de monitoring tout en un

2 years warranty

Product highlights

Signal Test & Conversion in Compact Form
SDI/HDMI Up/Down/Cross-Conversion
Signal Integrity Checks
Audio Level Metering up to 8 Channels
Test Pattern Generator (8 Types)
Up to 1080p60 Input/Output
5" LCD with 800 x 480 Resolution
Eye Pattern Diagram of SDI Input
1/4"-20 Mounting Thread
PSU Included, Battery Plates Supported

€1,140.00 (tax incl.) €950.00 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Fiche X-TS-MINI

Subscribe To When In Stock

You have successfully subscribed to this product

Description

Digital Forecast BRIDGE-X-TS MINI outil de monitoring tout en un

In my box

DIGITAL FORECAST Bridge X_TS mini
Universal Power Supply with International Plug Adapters

DIGITAL FORECAST Bridge X_TS mini

In a compact and portable form factor, the DIGITAL FORECAST Bridge X_TS mini provides SDI/HDMI up/down/cross-conversion and signal measurement functions for up to 1080p60 signals. The lightweight device allows signal integrity checks, up to 8 channels of audio level metering, and simultaneous test pattern generation and measurement. Up to 1080p60 resolution input and output is supported over 3G/HD/SD-SDI and HDMI 1.3 connections.

An intuitive workflow via the 5" screen lets you select the signal type to display, monitor waveform, vectorscope, jitter, and other analysis factors, set the output resolution and frame rate, and more. The signal can be viewed in standard full screen mode or in split screen mode where the video is displayed on the left side and measurement details on the right.

A power supply is included with international plug adapters, but optional L-Series and LP-E6 battery plates are also supported on the rear for portable use (see Accessories tab). A 1/4"-20 mounting thread is provided on the bottom.

Technical sheet

Screen size 5"
Resolution 525/29.97, 625/25, 480P, 576P720P (24/25/30/60/59.94/50)1080i (60/59.94/50)1080P (30/25/24/60/59.94/50)
Inputs 1x HD-SDI on BNC f.1x HDMI on HDMI port f.1x CVBS or AES/EBU on BNC f.1x VGA on HD-15 port f.1x Analog audio on 3.5 mm jack f.
Outputs 1x HD-SDI on BNC f.1x HDMI on HDMI port f.1x CVBS or AES/EBU on BNC f.1x VGA on HD-15 port f.1x Analog audio on 3.5 mm jack f.
12 VDC power source
Power consumption 9W max.
Dimensions 138.5 x 87.9 x 22mm
Mass 325g
