Brand KISS-BOX

KissBox 3 Slot I/O Cardframe ( empty ) Bootloader V4

1 year warranty

Product highlights

3 emplacements pouvant contenir jusqu'à 24 entrées et/ou sorties polyvalentes
Contrôle IP facile (TCP ou UDP)
Contrôlable avec DMX-512 sur Ethernet. (avec le micrologiciel Artnet)
Contrôlable avec MIDI sur Ethernet. (avec micrologiciel RTP-MIDI)
Compatibilité Windows, Mac OS X et Linux
Alimentation de fonctionnement via le câble réseau.– IEEE 802-3a

€348.00 (tax incl.) €290.00 (tax excl.)

Tax included

Subscribe To When In Stock

You have successfully subscribed to this product

Description

KissBox 3 Slot I/O Cardframe ( empty ) Bootloader V4

In my box

KissBox 3 Slot I/O Cardframe ( empty ) Bootloader V4

KissBox 3 Slot I/O Cardframe ( empty ) Bootloader V4

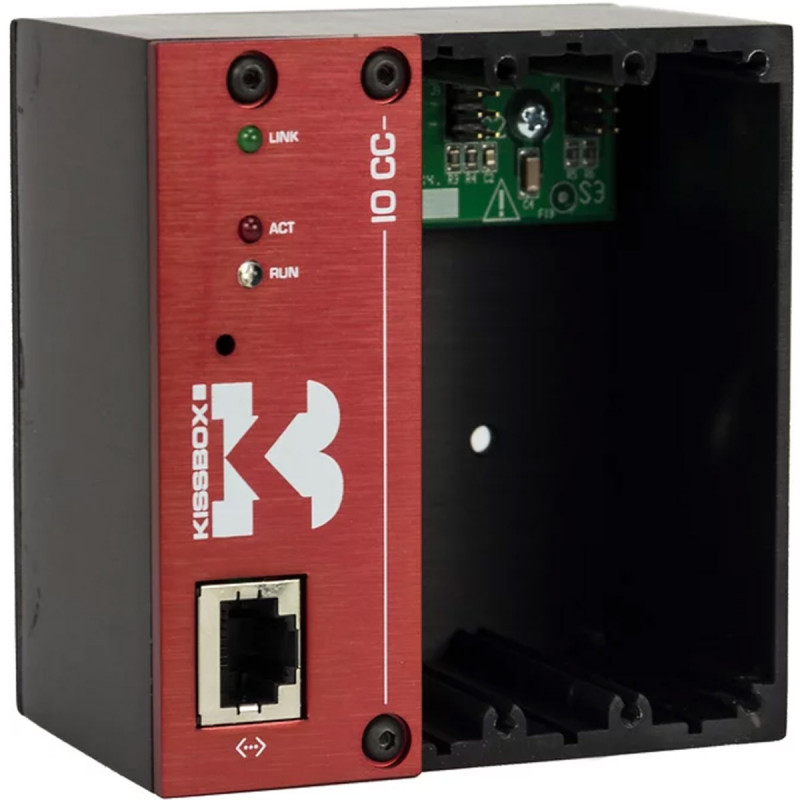

The KissBox IO3CC CardCage can hold up to 3 standard Kiss-Box I/O-Cards thus allowing control over up to 24 IO points. Input signals received on input cards will be translated to Ethernet UDP/IP or TCP/IP packets and send out over the network. Received Network messages translated to output signals on the selected output cards. Any compliant 3th party software can be used to process these messages and thus “read” or “write” standard in and outputs (like relays, contact-closures, analog signals) via a standard Ethernet network. A range of I/O cards is available.

If configured to use the Artnet protocol the IO3CC CardCage can be used to control the cards with DMX-512. This allow any Artnet compliant lighting controller or software to control and receive switching data from the IO3CC.

Our RTP-MIDI firmware makes it possible to use the IO3CC in a MIDI environment. This allows for full control of all the IO3CC Input and Output cards trough MIDI soft and hardware devices like musical keyboards and sequencers.

Technical sheet
