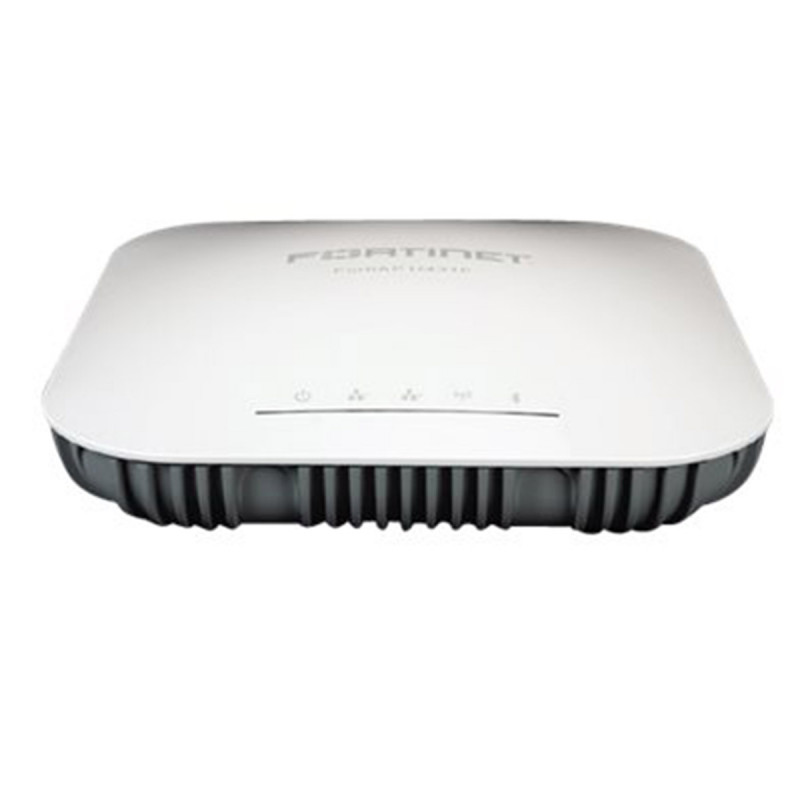

Fortinet FAP-431F Points d'accès sans fil 802.11ax - 2,40 GHz, 5 GHz
zoom_out_map
chevron_left chevron_right

Fortinet FAP-431F Points d'accès sans fil 802.11ax - 2,40 GHz, 5 GHz

Limited lifetime warranty

Product highlights
  • 802.11ax
  • Tri-Radio 2.4 GHz + 5 GHz + scanning
  • 5 Internal/External Antennas
  • 4x4 MU-MIMO
  • Up to 1,147 Mbps + 2,402 Mbps


€1,454.16 (tax incl.) €1,211.80 (tax excl.)
Tax included
ou réglez en :
Paiement en deux fois Paiement en trois fois Paiement en quatre fois avec Paiement fraction avec Alma

Sélectionnez Paiement fraction avec Alma au moment du paiement

en Paiement en deux fois en Paiement en trois fois en Paiement en quatre fois
Aujourd'hui*  €  €  €
Dans 1 mois  €  €  €
Dans 2 mois  €  €
Dans 3 mois  €
Total TTC  €  €  €
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Fortinet FAP-431F Points d'accès sans fil 802.11ax - 2,40 GHz, 5 GHz

In my box
  • 1 x FAP-431F
  • 1 x Mount kit for Ceiling, T-Rail and Wall

Fortinet FortiAP 431F 4x4 MU-MIMO Access Point with Dual Radio, RP-SMA External Antennas

This high throughput enterprise class 802.11ax indoor AP provides three radios and 8 spatial streams. This top-of-the line access point supports OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance.

Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filter protect the wireless LAN from the latest security threats.

Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

Technical sheet
  • Hardware Type : Indoor AP
  • Number Of Radios : 3 + 1 BLE
  • Number Of Antennas : 5 Internal + 1 BLE Internal
  • Antenna Type And Peak Gain : PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
  • Frequency Bands (Ghz) : 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
  • Radio 1 Capabilities : Frequency Band: 2.4 GHz
  • Radio 1 Capabilities : Channel width: 4x4 20/40 MHz
  • Radio 1 Capabilities : Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024
  • Radio 1 Capabilities : MIMO chains: 4x4 service
  • Radio 2 Capabilities : Frequency Band: 5.0 GHz
  • Radio 2 Capabilities : Channel width: 4x4 20/40/80MHz and 2x2 160MHz
  • Radio 2 Capabilities : contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024
  • Radio 2 Capabilities : Mimo chains: 4x4 service
  • Radio 3 Capabilities : Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning
  • Maximum Data Rate : Radio 1: up to 1147 Mbps
  • Maximum Data Rate : Radio 2: up to 2402 Mbps
  • Maximum Data Rate : Radio 3: scan only
  • Bluetooth Low Energy Radio : Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
  • Interfaces : 1x 100/1000/2500 Base-T RJ45,
  • Interfaces : 1 x 10/100/1000 Base-T RJ45,
  • Interfaces : 1x Type A USB, 1x RS-232 RJ45 Serial Port
  • Power Over Ethernet (Poe) : 802.3at PoE default
  • Power Over Ethernet (Poe) : 1 port powered by 802.3at or 2 ports powered by 802.3af
  • Power Over Ethernet (Poe) : - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate
  • Power Over Ethernet (Poe) : in 2x2 mode with reduced power R1/R2 17dBm(Tx power)
  • Simultaneous Ssids : Up to 16 (14 if background scanning enabled)
  • Eap Type(S) : EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
  • User/Device Authentication : WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist
  • Maximum Tx Power (Conducted) : Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)*
  • Maximum Tx Power (Conducted) : Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)*
  • Maximum Tx Power (Conducted) : Radio 3: NA
  • Kensington Lock : Yes
  • Ieee Standards : 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w,
  • Ieee Standards : 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz
  • Ssid Types Supported : Local-Bridge, Tunnel, and Mesh
  • Per Radio Client Capacity : 512 clients per radio (Radio1 and Radio2)
  • Cellular Co-Existence : Yes
  • Led Off Mode : Yes
  • Reset Button : Yes
  • Advanced 802.11 Features :
  • Ofdma : Yes (UL and DL)
  • 2.4 Ghz Ofdma : Yes
  • Spatial Reuse (Bss Coloring) : Yes
  • Ul Mu-Mimo 802.11Ax Mode : Yes
  • Dl-Mu-Mimo : Yes
  • He-Mu-Mimo : Yes
  • Enhanced Target Wake Time (Twt) : Yes
  • Zerowait Dfs/Agile Dfs : No
  • Wireless Monitoring Capabilities :
  • Rogue Scan Radio Modes : Background, Dedicated
  • Wips / Wids Radio Modes : Background, Dedicated (recommended)
  • Packet Sniffer Mode : Yes
  • Spectrum Analyzer : Yes
  • Length X Width X Height : 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm)
  • Weight : 2.16 lbs (0.98 kg)
  • Mounting Options : Ceiling, T-Rail, and Wall
  • Included Accessories : Mount kit for Ceiling, T-Rail and Wall
  • Power Supply : SP-FAP400-PA-XX or GPI-130
  • Power Consumption (Maximum) : 24.5 W
  • Humidity : 5 - 90% non condensing
  • Operating / Storage Temperature : 32–113°F (0–45°C) / -31–-94°F (-35–70°C)
  • Directives : Low Voltage Directive • RoHS
  • Ul2043 Plenum Material : No
  • Mean Time Between Failures : > 10 Years
  • Surge Protection Built In : Yes
  • Hit-Less Poe Failover : Yes
  • Wifi Alliance Certified : Yes
  • Dfs : FCC, IC, CE, Japan, Korea, Taiwan
Data sheet
FAP431FE
