Lumens VS-LC200 - Lecture Capture Système IP/HDMI

Lumens VS-LC200 - Lecture Capture Système IP/HDMI

Use this LC200 CaptureVision System from Lumens to mix four video and computer sources to create engaging presentations or productions of events and lectures. The system works as a switcher, recorder, and streaming device and supports up to 1080p60 resolutions. Each HD input is recorded independently along with the program output for editing purposes. This can be easily uploaded to your organization's Kaltura, Opencase, Panopto, or Wowza platform.

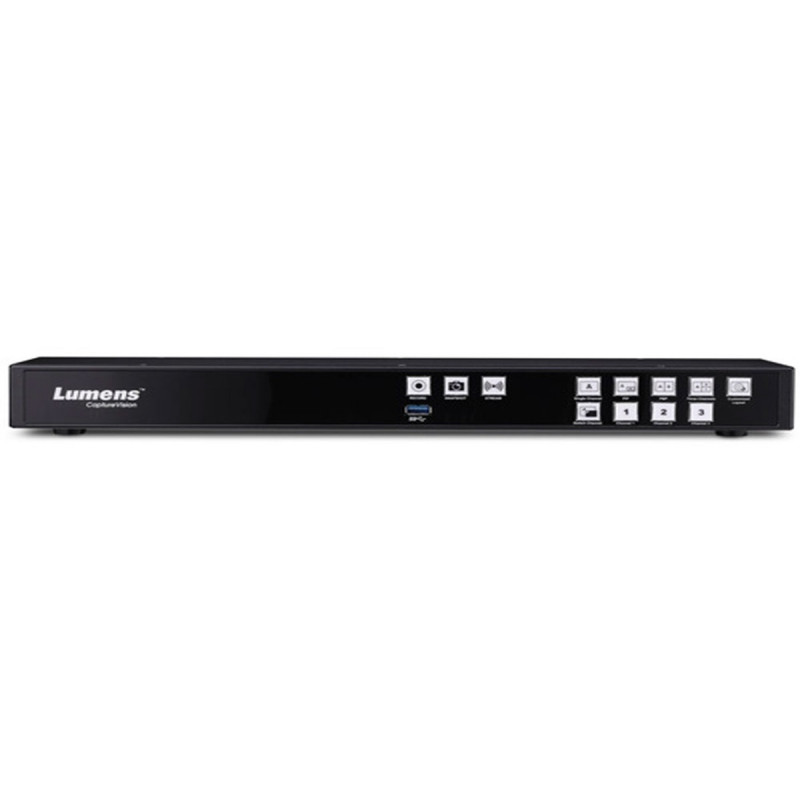

Built-in control buttons on the front panel allow you to switch between different display views and channels with ease. Embedded audio in the video inputs can be mixed with in-line 3.5mm jacks to provide expanded audio control. The rear of the system has an Ethernet port to receive and transport IP video to streaming platforms like YouTube, Twitch, and Facebook. Control for the system can be achieved with the RS-232/RS-485 port.

Features at a Glance

• Supports RTMP, RTMPS, MPEG-TS, TCP, and UDP streaming protocols
• Video files are compliant with standard editing systems for fast post-production turnaround
• Recordings are stored onboard to the unit's 1TB HDD, locally via USB drive, to network NAS storage, or uploaded to a network server via FTP
• Can be pre-programmed to record and stream automatically with Outlook calendar and Google calendar interfaces
• Supports picture-in-picture, picture-by-picture, single-channel, three-channel, and customized displays via front buttons
• Manage content with Kaltura, Opencase, and Ponopto
• Stream content with Wowza, YouTube, Twitch, and other platforms

Control

• Serial control via RS-232 and RS-485 protocols
• Plug in keyboard, mouse, and dual displays for access to system settings, advanced controls, PTZ cam control, and program output
• Separately available remote control panel or Creston controllers allow presenters to control production live and deploy custom-made layouts
• Organizations can manage units remotely via the web interface
