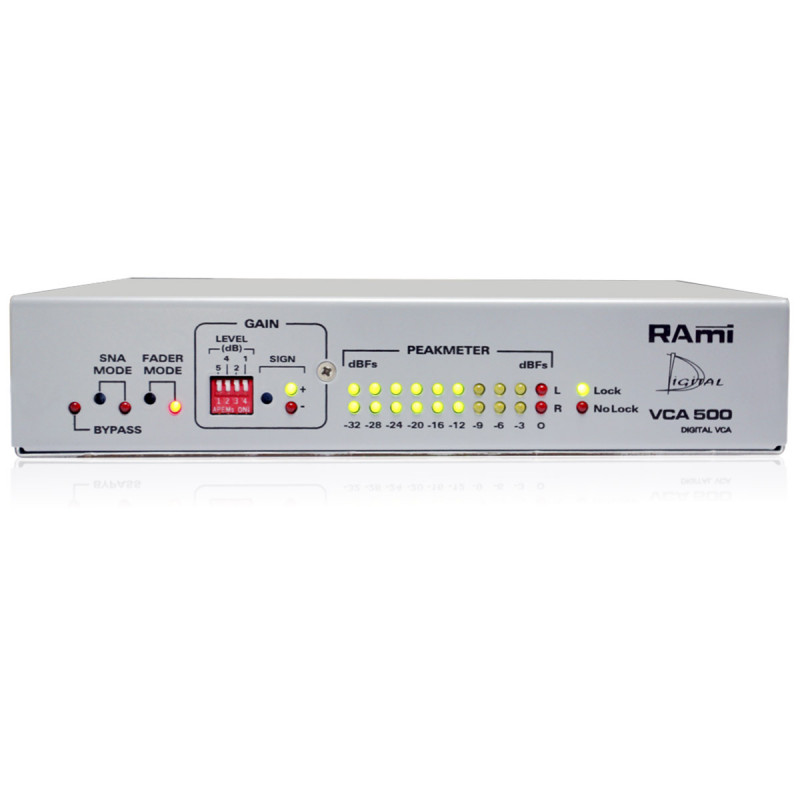

Rami Contrôleur gain 1 canal numérique Commande Pot ou Dip SLIMRACK

3 years warranty

Product highlights

VCA500 is intended to:

  • Increase or decrease digital signal nominal level. For instance a  -21 dBFs signal can be increased to  -18 dBFS, or -15 dBFs.
  • Adjust a digital signal level,in using a potentiometer, like to remote control amplified loudspeaker with digital input.
  • Interface several sound level limiters like SNA50/SNA70 to control one or more digital channels. Example: using sound level limiters in large rooms, cascading  allows multi channel regulations.


€912.00 (tax incl.) €760.00 (tax excl.)
Tax included
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description
In my box
  • Rami Digital 1 channel gain controller SLIMRACK Pot or Dip control

Rami Digital 1 channel gain controller SLIMRACK Pot or Dip control

VCA500 allows to control the digital audio signal level. It is made of two main sections:

  • One fixed gain stage (+/- 12 dB)
  • One adjustable gain stage, remotely controlled using a normal potentiometer.
  • One peakmeter displaying the digital audio signal filling, allows a accurate gain setting.
  • XLR digital input and transformer (AES/EBU)
  • XLR digital output and transformer (AES/EBU)
  • Manage all digital audio signals formats
  • Indicator of digital source errors.
Technical sheet
  • Weight: 2,2 lb
  • Console: SLIMRACK
  • Dimensions: 8,66 x 1,73 x 5,9 pouces
Data sheet
VCA500
