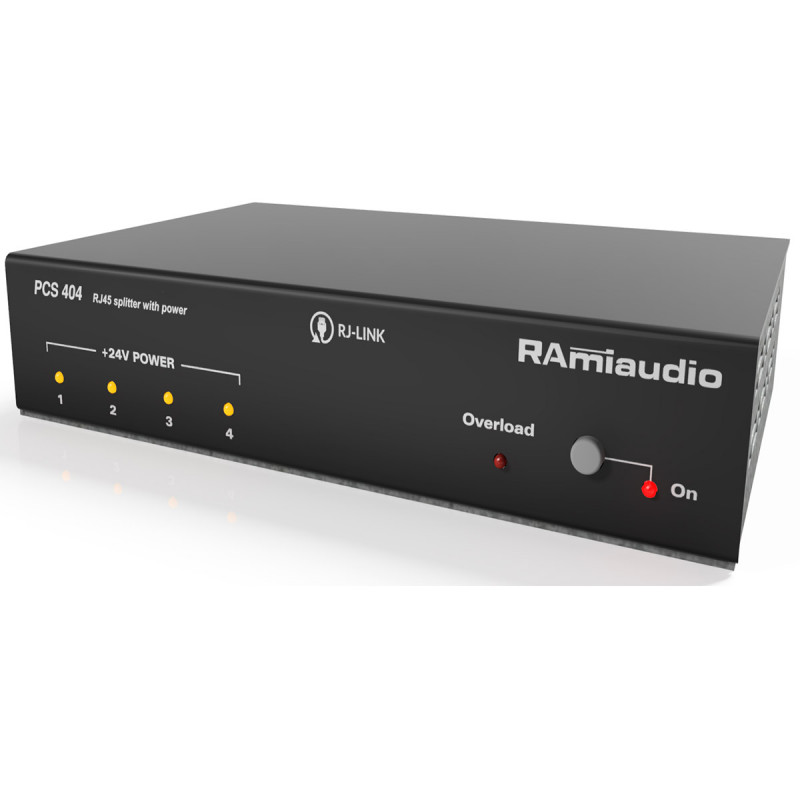

PCS404 is a 2 in 1 equipment, specialized for our range of RJ45 equipment. It integrates both an audio distributor and a 24V/1.25A power supply, protected in overload.

PCS404 can power up to 15 PCS304 or PMI103 or PRF75A units.

It includes in a slimrack :

• 4 identical cells composed of two RJ45.
•  "I/O" RJ45: Balanced stereo audio input/output signal (microphone input, console output...)
• "I/O + power" RJ45: Audio input/output signal with 24-volt power supply for downstream equipment.

On each cell, it is possible to choose the local or "Coupled" input. It is therefore possible to make the following distributions :

•  4x 1 to 1
•  2x 1 to 2
•  1x 1 to 1 + 1x 1 to 3
•  1x 1 to 4.

Each 24V supply is protected in short-circuit by an automatically resettable thermal circuit breaker.

Protection by circuit breaker and indication by indicator of the overload of the general supply.

Compatible with XRJ102 M or XRJ102 F adapters. These devices allow you to easily interface a stereo audio link on XLR.
