Rami Sélecteur Signal multiplex 1 parmi 12 avec GPO/GPI+Power Fail

3 years warranty

Product highlights

Detection of active presence of the multiplex signal on the output.
Double mute on non-active outputs to achieve very high crosstalk rejection.
Embedded web server usable on any internet browser.
Possibility by this Web interface to configure the selection of the MPX channel,
Interface accessible by username and password.

€2,652.00 (tax incl.) €2,210.00 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

Rami Sélecteur Signal multiplex 1 parmi 12 avec GPO/GPI+Power Fail

In my box

Rami 1 of 12 Multiplex Signal Selector with GPO/GPI+Power Fail

Rami 1 of 12 Multiplex Signal Selector with GPO/GPI+Power Fail

MPX121 is a multiplex signal selector 1 of 12.

Inputs / outputs on BNC.
Level Max MPX: + 16 dBu.
Bandwidth 10 Hz to 250 KHz +/- 1 dB.
Detection of active presence of the multiplex signal on the output.
Double mute on disable outputs for a large crosstalk rejection.
Embedded web server usable on any web browser.
Possibility by this web interface to configure the MPX channel selection, visualize the enable input and check the presence of the MPX signal output.
Interface accessible through a user name and a password.

The MPX121 also features a SNMP agent for the supervision and management of the equipment. This agent is used to select and visualize via owners OID, the input MPX channel.

It can generate two directions an alert trap in "V2C format" or "V2C Inform format" for each switch, and verify the presence of the output MPX signal.

Technical sheet

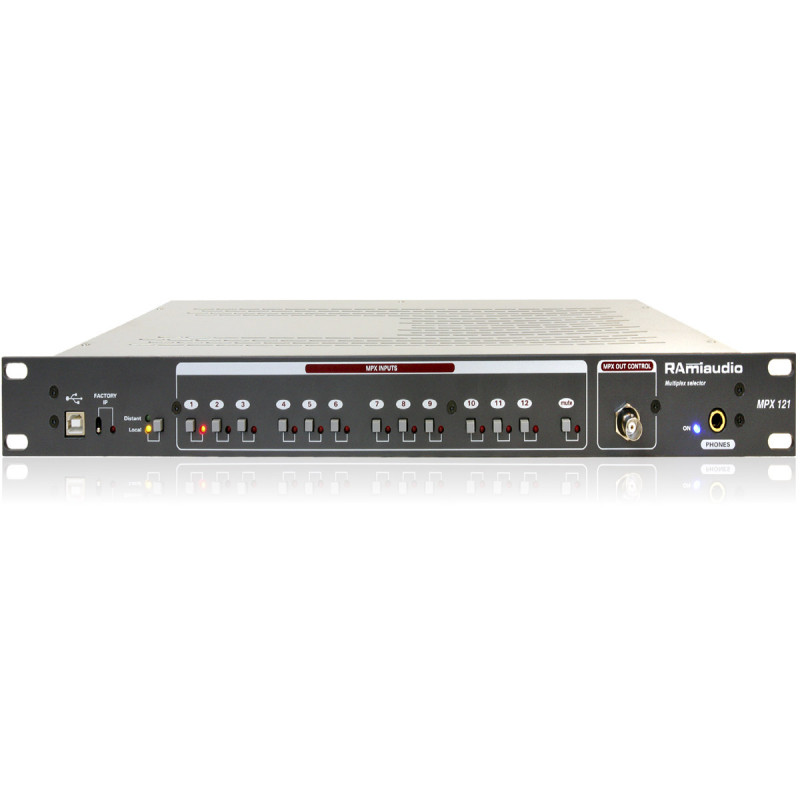

On the front:

USB port for firmware update.
Remote (IP) or local control fugitive switch.
Factory IP address recall switch.
Display of the selected entry.
12 momentary input selection switches in local mode.
The local mode allows on-site maintenance by isolating a complete HF chain.
Momentary switch to mute the MPX output.
Control BNC taking up the reflection of the MPX signal at the output.
Left/Right audio monitoring headphone output.

On the back side:

12 BNCs for MPX inputs.
A BNC out MPX.
RJ45 LAN socket.
GPI female Sub-D25 pts socket, input selection + Mute.
Sub-D25 pts male GPO socket (indication of selected input + Mute status) & power fail.
Mains IEC base (90 to 250 Volts).
