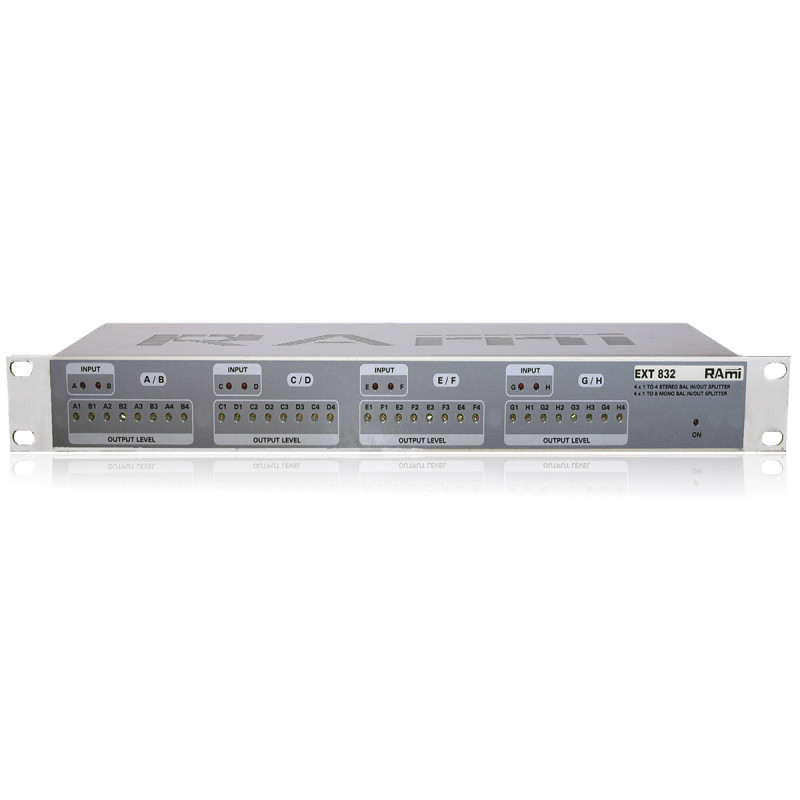

Rami Distributeur 8 vers 32 - RJ45

3 years warranty

Product highlights
  • Splitting the output signal from a broadcast mixing console
  • Sharing the satellite signal in multi outputs modulation centres.
  • Sharing the recording signal.
  • Splitting and sharing both stereo and mono signals.
  • The audio wide band allows EXT832 to handle MPX signals.


€2,340.00 (tax incl.) €1,950.00 (tax excl.)
Tax included
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description
In my box
  • Rami Distributor 8 to 32 - RJ45

Rami Distributor 8 to 32 - RJ45

EXT832, in a single unit 19", is an analog audio distributor with balanced inputs/outputs, offering a wide range of possibilities, including multiple outputs. EXT832 can be used as:

  • 4 line amplifiers for 4 balanced stereo signals
  • 2 line amplifiers for 8 balanced stereo signals
  • 1 line amplifier for 16 balanced stereo signals
  • 1 line amplifier for 32 balanced mono signals or any desired combinations

On each output channel, one or several stereo output can be set as mono.

I.e.: it is possible to set one channel with three balanced stereo outputs and two balanced mono.

Each of the 32 outputs is level controlled using a multiturn pot from front panel.

The input and output amplifiers are designed to handle a wide range of signals, with minimum noise and distortion and mainly for a high level of common mode rejection ratio.

Technical sheet
  • Weight: 8,8 lb
  • Dimensions: 19 x 1,73 x 9"
  • Storage: 1U - 19"
Data sheet
EXT832
