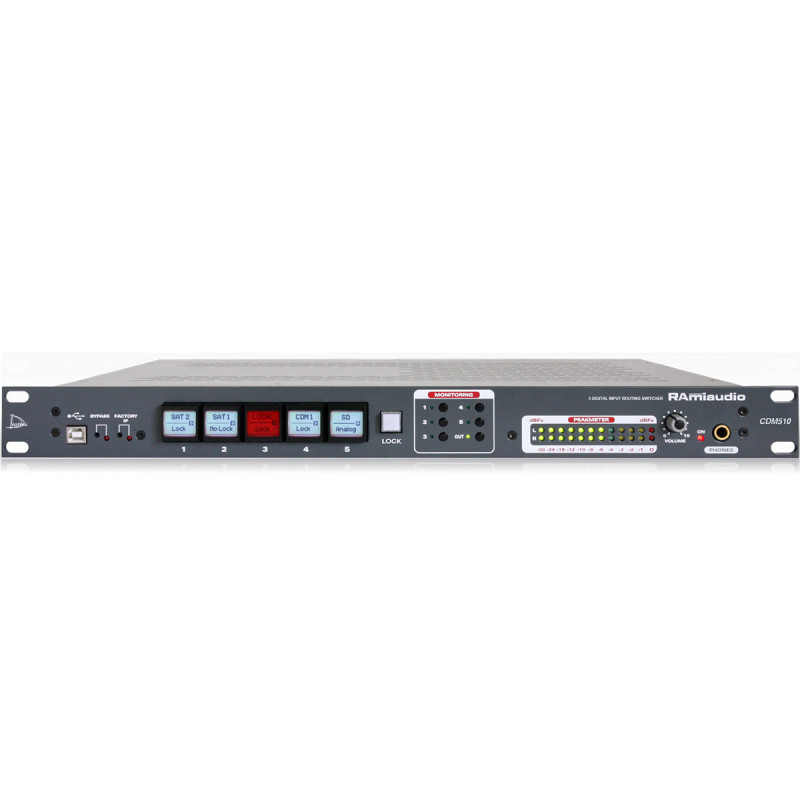

Rami Centre de modulation AES Broadcast 5 - 1 - GPI/GPO

Rummy AES Broadcast Mod Center 5 - 1 - GPI/GPO

CDM510 allows you to select one of five digital audio sources.

A monitoring section allows the user to control the inputs/outputs of the CDM510 at any time. A 24-bit 96KHz D/A converter provides a balanced analog output on a Sub-D 9 on the rear panel, a headphone output for efficient signal control.

• Digital inputs / outputs in AES/EBU format on transformer.
• Management of audio signals sampled up to 96KHz.
• It accepts all professional and semi-professional digital audio formats (AES/EBU, SPDIF, IEC 958) as input.
• Digital peakmeter for level visualization.
• No alteration of associated data (index, text...).
• Selection of the source and visualization of the audio presence via an embedded web server.
• Bypass between the main source and the outputs in the event of a power failure.
• 2 independent digital outputs (even in the event of a power failure).
• Monitoring: bargraph, headphone output (integrated 24-bit / 96KHz D/A converter).
• Balanced stereo analog stereo monitoring output on Sub-D9.
• Balanced stereo analog stereo input on Sub-D9, assignable to one of the selector inputs
• Resynchronization of the output of each input on a single Master clock.
• No desynchronization of the output during source switching.
