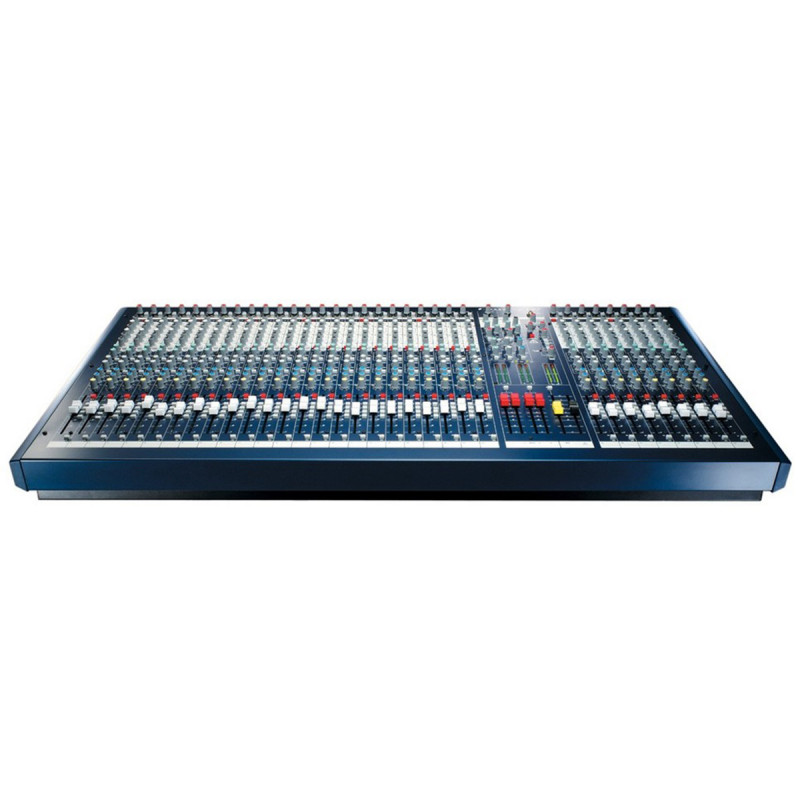

Soundcraft RW5676 - Console LX7II - 32 mono / 2 stéréo / 6 aux
1 year warranty
Product highlights
- The new GB30 microphone preamp offers a wider dynamic range.
- The new high-quality 4-band GB30 EQ was previously unavailable on a console of this price. It is now integrated into the LX7 II.
- The signal-to-noise ratio has been improved by 6 dB compared to the original LX7.
- This console has 7 real busses including 4 sub-groups, a stereo output and a mono output plus 6 switchable pre/post fader auxiliaries.
- The LX7 II has direct outputs for multitrack recording during live or studio performances.
- The 48V phantom power supply of the microphone inputs is switchable in blocks of 4 channels and allows the use of static microphones in better conditions.
Subscribe To When In Stock
You have successfully subscribed to this product
Description
Soundcraft RW5676 - Console LX7II - 32 mono / 2 stéréo / 6 aux
In my box
- Soundcraft LX7 II - 32 Channel Recording Mixer
Soundcraft LX7 II - 32 Channel Recording Mixer
The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4" phone line level inputs, direct outputs are featured on the first 32 channels for recording and monitoring applications.
High quality redesigned microphone preamps are located on every input channel, as well as 1/4" TRS phone inserts for routing signal to external processors. All LX7 II configurations feature 4 sub group outputs that can be used for routing signal to monitors, recorders etc. 6 Aux sends are featured and provide routing to external effects and signal processors. The LX7 II series features the routing and functionality that will prove suitable for crucial recording and live sound reinforcement.
32 Input Configuration
The LX7 II console is available in three different channel configurations. This model features 32 input channels with 4 sub group outputs.
4 Sub Group Outputs
4 sub group outputs are featured and allow audio signals to be routed to multi track recorders and monitors.
Inserts
Inserts are featured on all input channels and group outputs. Inserts allow routing to and from external signal processors.
Enhanced Mic Preamplifiers
Every input features a Graham Blyth designed microphone preamplifier that delivers exceptional headroom, smooth detail and very low noise floor.
Technical sheet
Inputs:
32 balanced Mic/Line inputs on XLR/6.35 mm Jack with insert
2 balanced stereo inputs on 6.35 mm jack
2 balanced stereo return inputs on 6.35 mm Jack
2 unbalanced 2TRK inputs on RCA
1 talkback microphone input on XLR
Exits :
3 balanced Mix LCR outputs on XLR
2 balanced monitor outputs on 6.35 mm jack
6 balanced Aux outputs on 6.35 mm Jack
32 direct outputs on 6.35 mm jack (mono channel)
1 headphone output on 6.35 mm stereo jack
Frequency response: +0/-1 dB, 20Hz – 20kHz (input/output)
Distortion + Noise: < 0.008% @ 1kHz (Mic sensitivity -30 dBu +10 dBu mix output)
Signal to Noise Ratio: -128 dBu (150Ω source, mic input max gain)
Crosstalk: >98 dB @ 1 kHz (input mute)
CMMR: 80 dB @ 1 kHz (max gain mono input)
EQ:
HF: 13 kHz, ±15 dB, 2nd order
HMF: 550Hz - 13kHz, ±15dB, Q=1
BMF: 80Hz - 1.9kHz, ±15dB, Q=1
LF: 80 Hz, ±15dB, , 2nd order
High Pass: 100 Hz, 18 dB/oct
Levels:
Mic input: +15dBu max
Line input: +30dBu max
Stereo input: +30dBu max
Output: +20dBu max
Headphone output (@200Ω): 2 x 250 mW
Impedances:
Mic input: 2 kΩ
Line input: >10 kΩ
Output: 150Ω
Consumption: 60W
Temperature: -10°C to 30°C
Dimensions: 1059 x 164 x 503mm
Weight: 25.4kg
Data sheet
€2,302.80
Tax included
€1,919.00 No tax
